1-2271457-4

номенклатурный номер
1-2271457-4
производитель TE
описание HEADER ASSEMBLY D3950 4P X

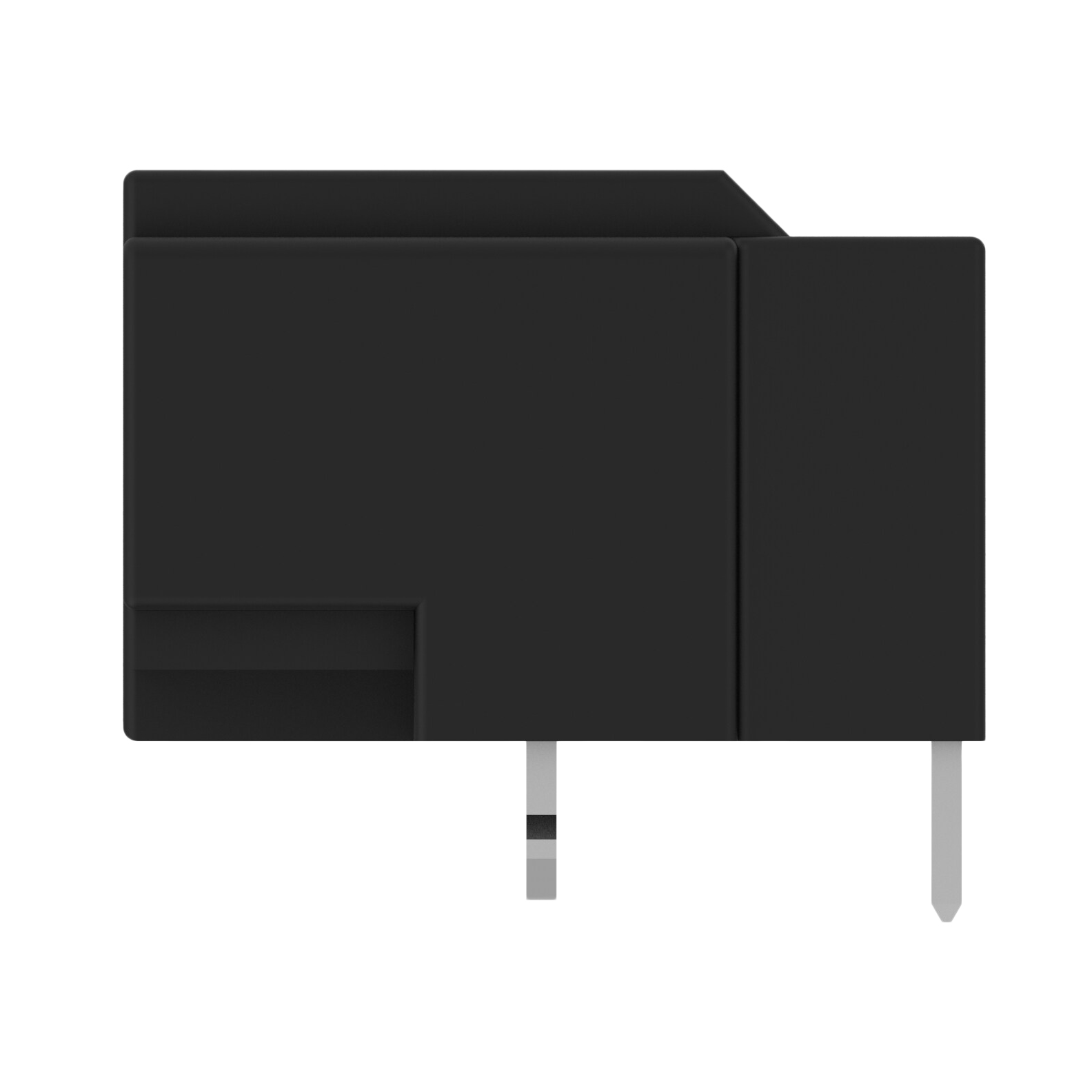

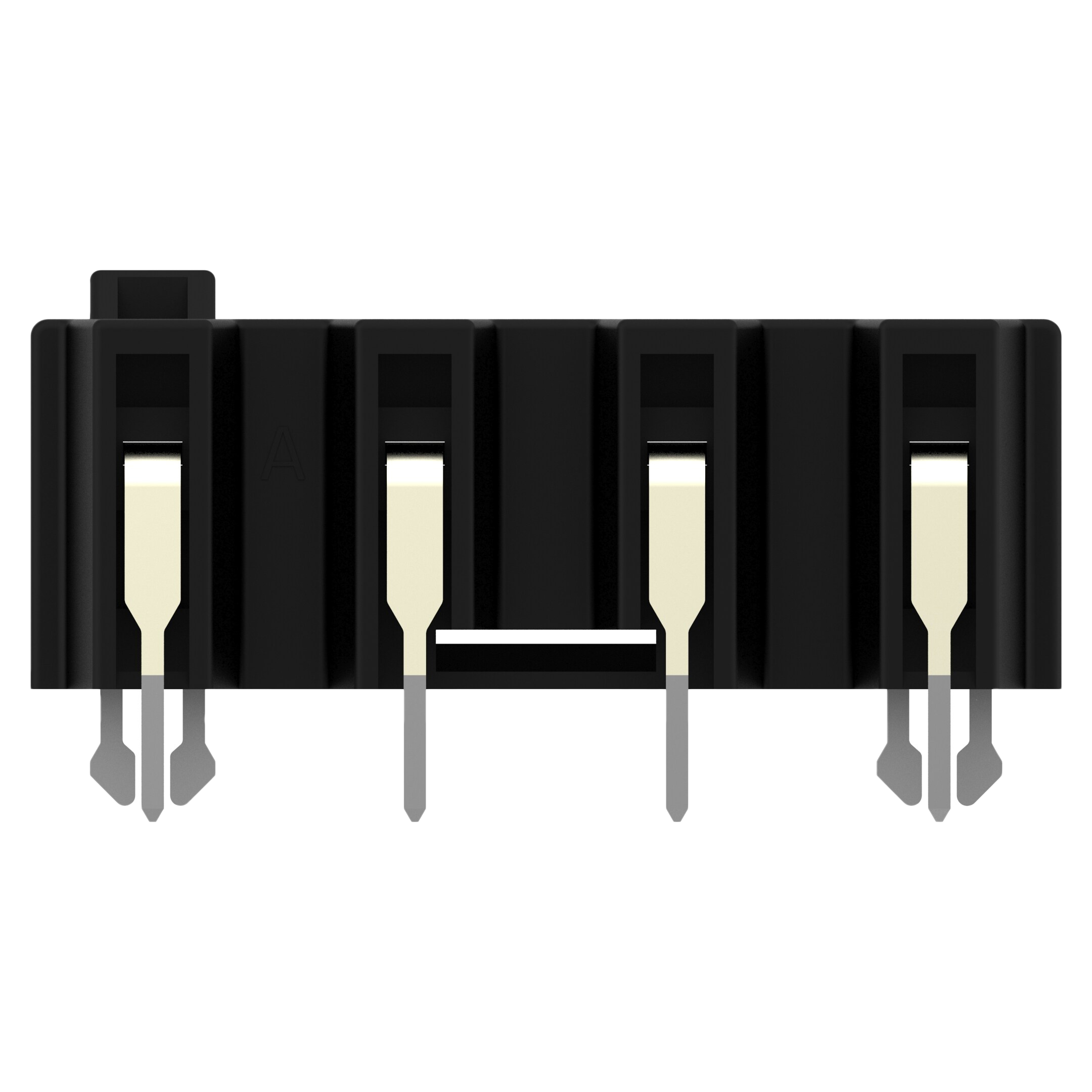

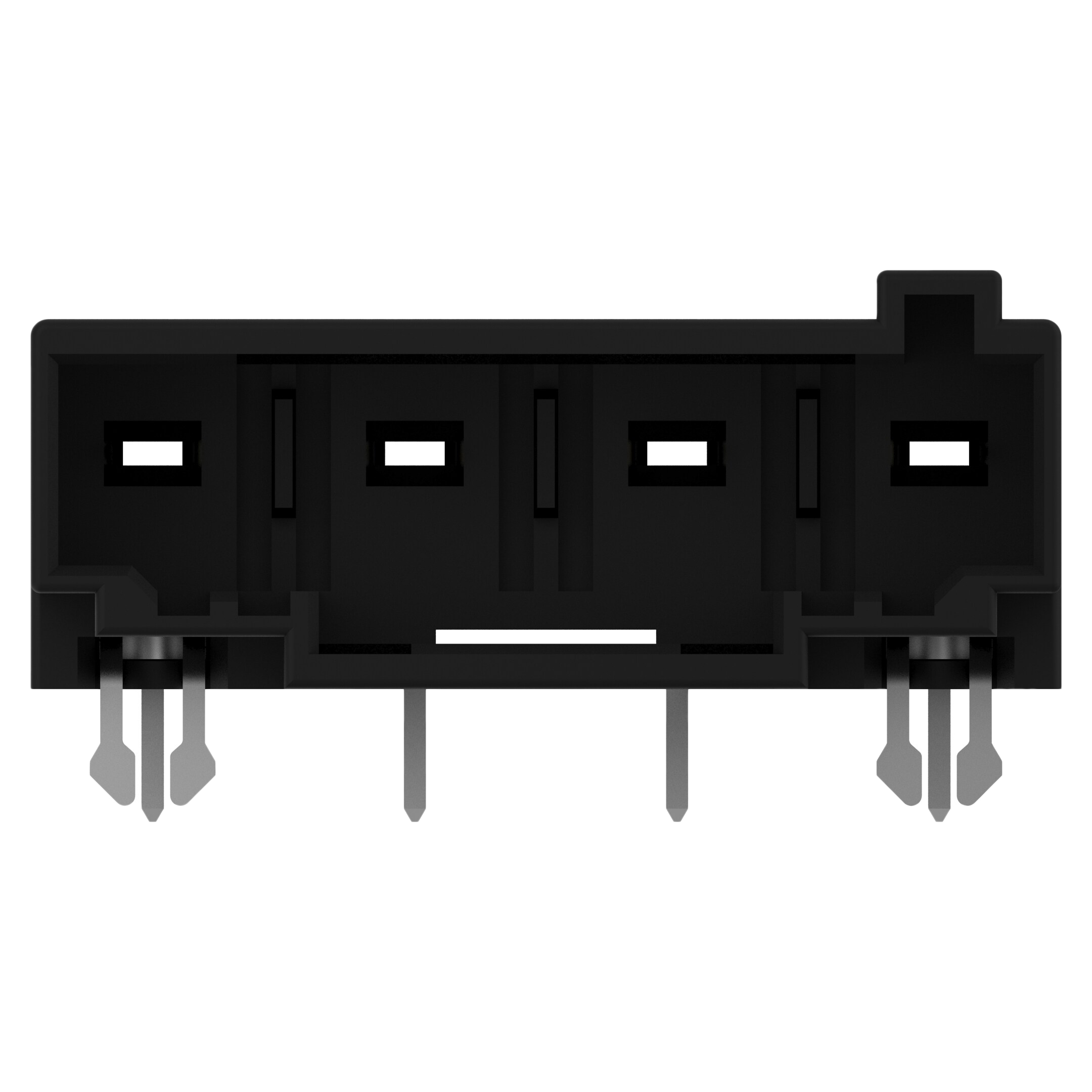

подробное описание Connector Header Through Hole, Right Angle 4 position 0.295" (7.50mm)
Стандартный срок поставки 25 weeks
Спецификация Datasheet Datasheet

продуктовые свойства

Features Board Lock
Connector Type Header
Voltage Rating 300VAC
Current Rating (Amps) 14.5A
Mounting Type Through Hole, Right Angle
Number of Positions 4
Number of Rows 1
Style Board to Cable/Wire
Operating Temperature -30°C ~ 105°C
Contact Type Male Pin
Fastening Type Push-Pull
Number of Positions Loaded All
Termination Solder
Contact Material Copper Alloy
Insulation Color Black
Pitch - Mating 0.295" (7.50mm)
Contact Finish - Mating Tin
Contact Shape Rectangular
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.472" (12.00mm)
Shrouding Shrouded - 4 Wall

доступно для заказа

(8000)
