| номенклатурный номер |
IXYH40N90C3D1
|
|---|---|
| производитель | IXYS |
| описание | IGBT 900V 90A TO247 |
| подробное описание | IGBT 900 V 90 A 500 W Through Hole TO-247 (IXTH) |
| Стандартный срок поставки | 44 weeks |
| Спецификация | Datasheet |

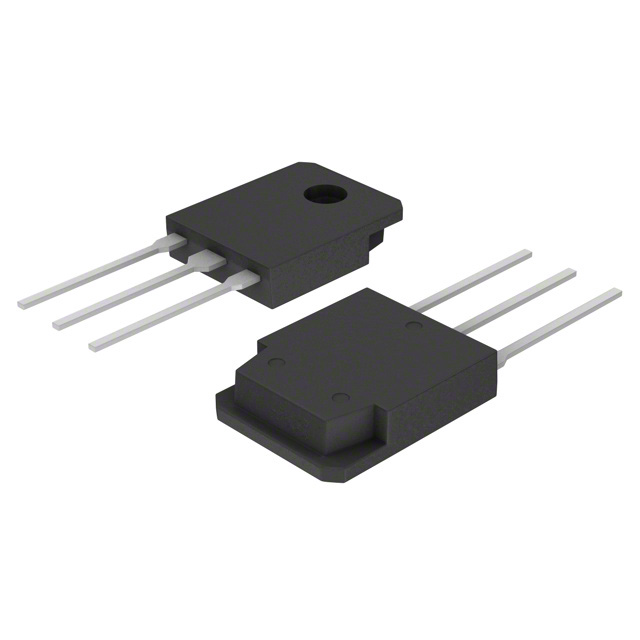

| Package / Case | TO-247-3 | |
|---|---|---|
| Mounting Type | Through Hole | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Input Type | Standard | |
| Reverse Recovery Time (trr) | 100 ns | |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 40A | |
| Supplier Device Package | TO-247 (IXTH) | |
| Td (on/off) @ 25°C | 27ns/78ns | |
| Switching Energy | 1.9mJ (on), 1mJ (off) | |
| Test Condition | 450V, 40A, 5Ohm, 15V | |
| Gate Charge | 74 nC | |
| Current - Collector (Ic) (Max) | 90 A | |
| Voltage - Collector Emitter Breakdown (Max) | 900 V | |
| Current - Collector Pulsed (Icm) | 180 A | |
| Power - Max | 500 W |
