MUN2214T1G

MUN2214T1G

Part Number	MUN2214T1G
Manufacturer	ON
Description	TRANS PREBIAS NPN 50V 0.1A SC59
Detailed Description	Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 230 mW Surface Mount SC-59
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet Datasheet Datasheet Datasheet Datasheet

Product Attributes

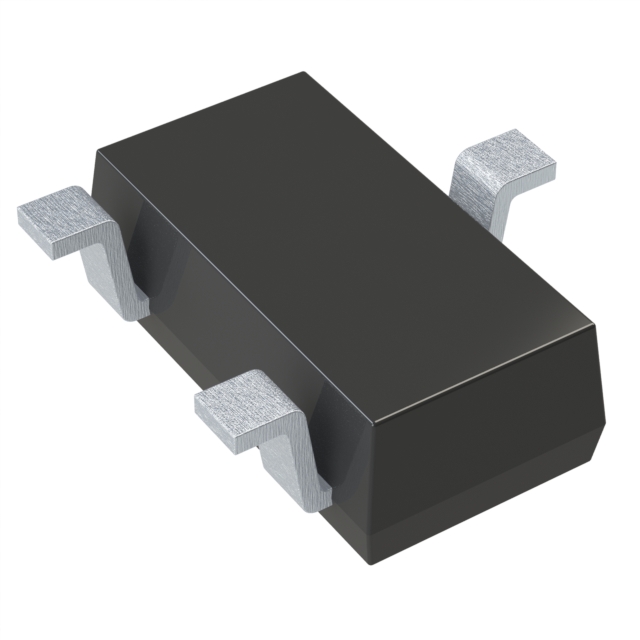

Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Transistor Type		NPN - Pre-Biased
Vce Saturation (Max) @ Ib, Ic		250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)		500nA
DC Current Gain (hFE) (Min) @ Ic, Vce		80 @ 5mA, 10V
Supplier Device Package		SC-59
Current - Collector (Ic) (Max)		100 mA
Voltage - Collector Emitter Breakdown (Max)		50 V
Power - Max		230 mW
Resistor - Base (R1)		10 kOhms
Resistor - Emitter Base (R2)		47 kOhms

Available To Order

QUANTITY (26460)

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
